Product Details:
Payment & Shipping Terms:
|
| Brand: | Forged | Material: | Titanium Zirconium Molybdenum Alloy |
|---|---|---|---|
| Surface: | Raw Ground | Advantage: | High Strength |
| Density: | 10.2g/cm3 | Purity: | Over 99.95% |
| Highlight: | Titanium Zirconium Molybdenum Alloys,Molybdenum Alloys Sheet Low Thermal Expansion,tzm molybdenum alloy Low Thermal Expansion |
||

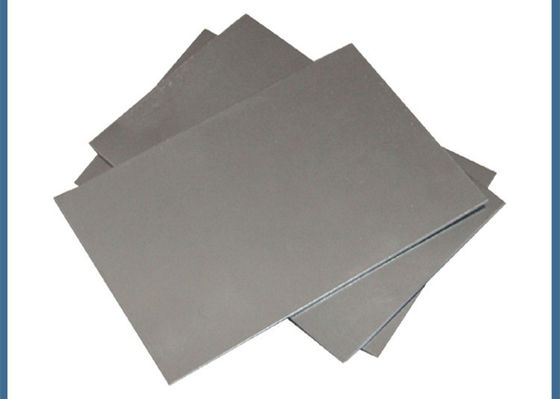

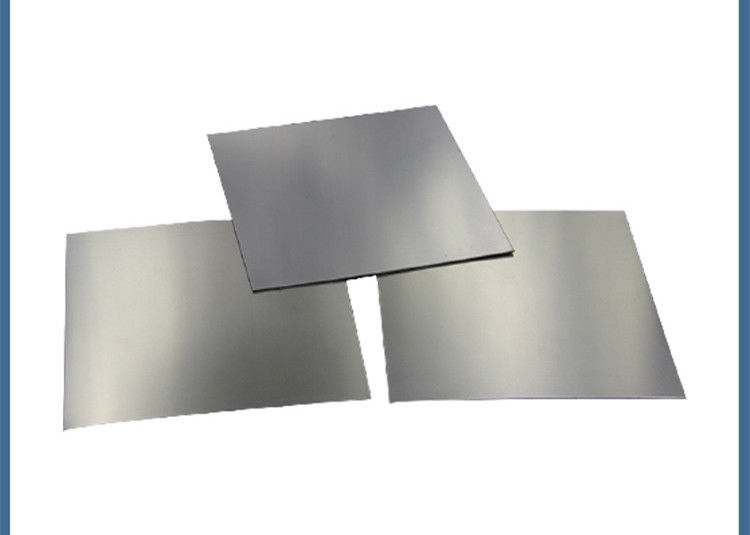

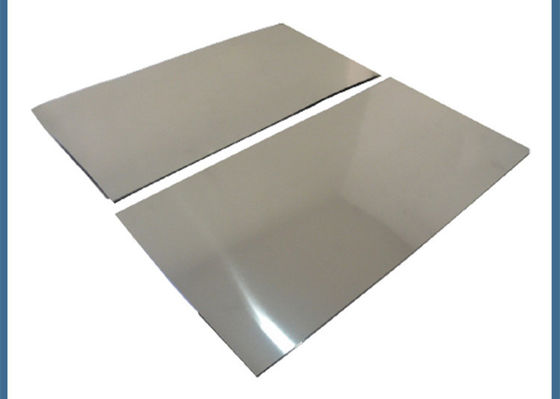

Tzm Titanium Zirconium Molybdenum Alloys sheet Ti0.5/Zr0.1 Customizable high temperature corrosion resistance
TZM Molybdenum Alloy
Features
1. High melting point
2.Low thermal expansion
3. High electrical resistance
4. Low vapour pressure
5. Good thermal conductivity
6. High density(w≥18.2g/cm3 ,Mo≥9.3)
7.TZM alloy has good mechanical properties, especially at high temperature its mechanical properties are better than that of pure molybdenum
8.TZM alloy (molybdenum zirconium titanium alloy) also has good welding properties
9.TZM alloy can resist corrosion of Zn and other metallic liquids
application
In the presence of cooling lubricants can be used in the case of carbide or high speed steel tools for machining
| advantage | high strength |
| shipping | can be negotiate |
| size | customized |
| 力学性能 |
延伸率
/%
|
弹性模量
/GPa
|
屈服强度
/MPa
|
抗拉强度
/MPa
|
断裂韧性
/(MP·m1/2)
|
| 数值 | <20 | 320 | 560~1150 | 685 | 5.8~29.6 |
| 温度/℃ | 性能 | |
| 抗拉强度/MPa | 延伸率/% | |
| RT | 1140 ~1210 | 7.5~13.0 |
| 1000 | 700 ~720 | 5.2 |
| 1200 | 320 ~360 | 9.0 |
| 1300 | 190 ~210 | 11.5 ~13.5 |
| 1400 | 140 ~170 | 11.0 ~16.0 |
