| Brand: | Forged | Material: | Tungsten |
|---|---|---|---|
| Purity: | Customize | Feature: | High Hardness |
| Highlight: | Customized Tungsten Copper Bar,Tungsten Copper Bar Vacuum Contact Materials,ISO9001:2008 High Density Alloy |
||
high density tungsten copper alloy pole bar rod customizable

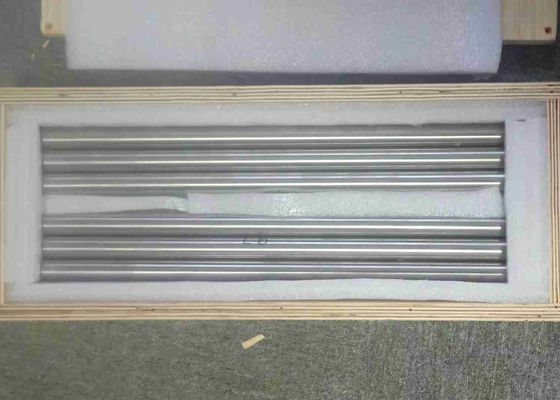

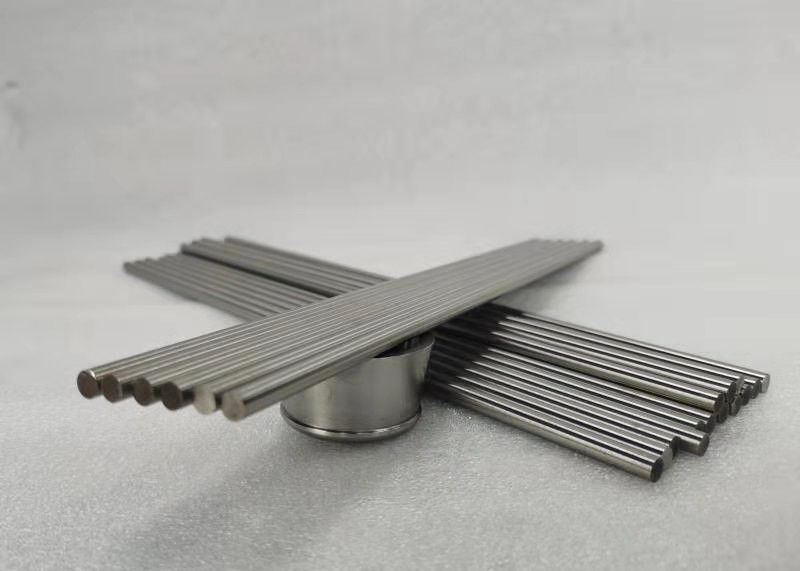

Tungsten copper rod:
The manufacturing process of tungsten and copper rod is hydrostatic molding, high temperature sintering and copper dissolution.All tungsten and copper rods can be manufactured according to customer's requirements
Application of tungsten copper bar
Tungsten copper Alloy (W-Cu alloy) is the composite of tungsten and copper which own it excellent performance of tungsten and copper. It is used widely in such industries as engine, electric power, electron, metallurgy, spaceflight and aviation.
1. High Performance Material for Aerospace Industry
2. Vacuum contact materials
3. Electrodes for electrical discharge machining
4. Electronic packaging materials and heat sink material.
Physical machine Property
|
Class
|
Density g/cm3 |
Hardness MN/m2 |
Resistivity μΩ.cm |
Conductivity IACS |
|
W50Cu50 |
11.85 |
1128 |
3.2 |
54 |
|
W55Cu45 |
12.30 |
1226 |
3.5 |
49 |
|
W60Cu40 |
12.75 |
1373 |
3.7 |
47 |
|
W65Cu35 |
13.3 |
1520 |
3.9 |
44 |
|
W70Cu30 |
13.8 |
1716 |
4.1 |
42 |
|
W75Cu25 |
14.5 |
1912 |
4.5 |
38 |
|
W80Cu20 |
15.15 |
2158 |
5.0 |
34 |
|
W85Cu15 |
15.9 |
2354 |
5.7 |
30 |
|
W90Cu10 |
16.75 |
2550 |
6.5 |
27 |
