Product Details:
Payment & Shipping Terms:
|
| Shape: | Round,Square | Chemical Composition: | Mo 99.95% |
|---|---|---|---|
| Type: | Non Ferrous Metal Material | Density: | 10.2g/cm3 |
| Size: | 10-100mm | Condition: | Vacuum Annealed |
| Application: | Industry | Material: | Molybdenum |

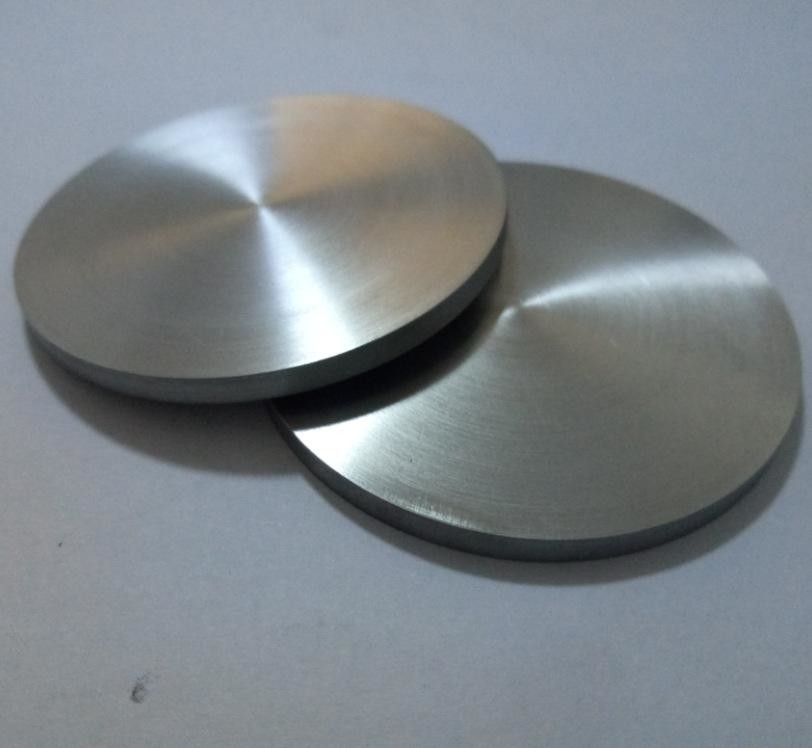

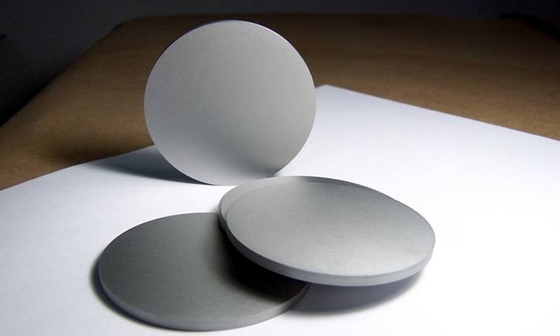

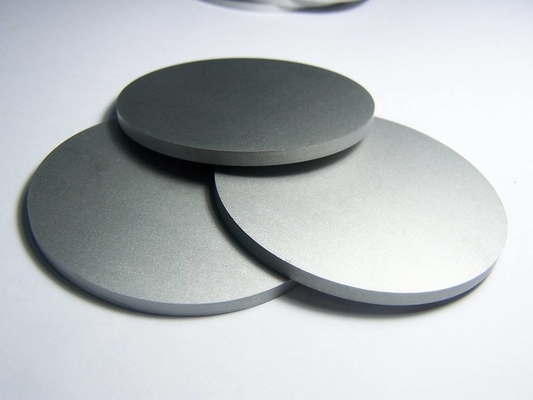

| Purity: | 99.96% | Product Name: | Molybdenum Target |
| Certificate: | ISO9001:2015 | Usage: | Conductive Glass, Rotary Coating Systems |
| Highlight: | photoelectron molybdenum sputtering target,round molybdenum sputtering target,semiconductor molybdenum target |
||
1. Grade: MO1.MO2
2. Purity :> =99.95%
3. Characteristic:
Melting Point: 2610°C
Boiling Point:5560°C
Density: 10.2g/cm3
High quality, workability
4. Certificate: ISO9001:2008
5. Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion..
6. Specifications:
| Thickness (mm) |
Thickness Tolerance | Width (mm) |
Width Tolerance | Length (mm) |
Length Tolerance |
| 0.10~0.30 | ±0.01 | ≤350 | ±2 | ≤1300 | ±5 |
| 0.31~2.00 | ±0.05 | ≤600 | ±5 | ≤1300 | ±5 |
| 2.01~3.00 | ±0.08 | ≤400 | ±3 | ≤1000 | ±5 |
| 3.01~4.00 | ±0.10 | ≤400 | ±3 | ≤1000 | ±5 |
7. Applications: It is used for fabrication of sintering boats, high temperature furnace heating elements and heat shields. the microelectronic ,flat panel display, data storage, optical glass coating ,and other industries.
