RP/HP/UHP Grade Graphite Electrode Block 1600~2400mm

Large Image : RP/HP/UHP Grade Graphite Electrode Block 1600~2400mm

Product Details:

Place of Origin:	China
Brand Name:	FGD
Certification:	ISO9001, ISO14000
Model Number:	fdg G-002

Payment & Shipping Terms:

Minimum Order Quantity:	1TON
Price:	USD2800-USD3000/TON

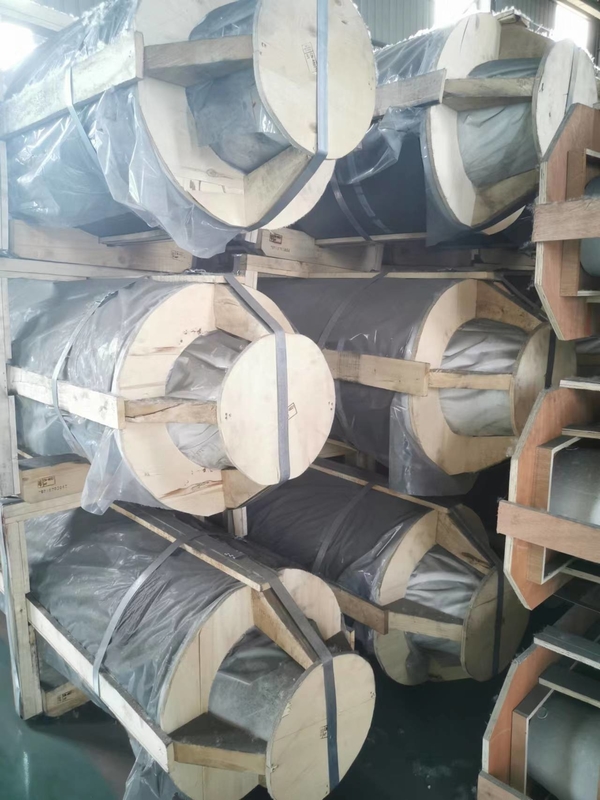

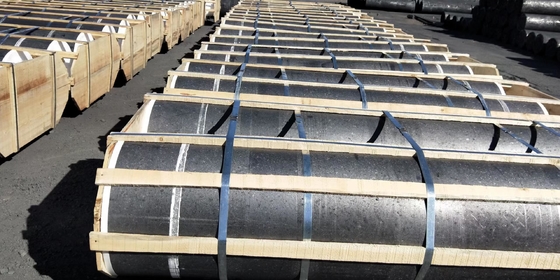

Packaging Details:	WOODEN CASE
Delivery Time:	3-5 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	2000 tons per month

Contact Now

Detailed Product Description

Model Number:	RP HP UHP SHP	Application:	EAF
Grade:	UHP (Ultra High Power)	Apparent Density (g/cm³ ):	1.73
Superiority:	High Energy Efficiency	Nipple:	3TPI/4TPI/4TPIL
Type:	Electrode Block	Length:	1600~2400mm
Raw Material:	100% Neddle Needle Coke
Highlight:	HP Grade Graphite Electrode Block , 2400mm Graphite Electrode Block , 4TPIL Carbon Graphite Material

RP/HP/UHP Grade Graphite Electrode

1. Properties Unit:mm

Item		Unit	Norminal Diameter
			UHP		HP		RP
			≤400mm	≥450mm	≤400mm	≥450mm	≤300mm	≥350mm
Resistance	E	μ Ω .m	≤5.5		≤6.5		≤8.5
	N		≤4.5		≤5.5		≤6.5
Bending Strength	E	MPa	≥11.0		≥10.5	≥9.8	≥8.5	≥7.0
	N		≥20.0		≥16.0		≥15.0
Elastic Modulus	E	GPa	≤14.0		≤12.0		≤9.3
	N		≤18.0		≤16.0		≤14.0
Bulk Density	E	g/cm3	≥1.66	≥1.67	≥1.62	≥1.60	≥1.53	≥1.52
	N		≥1.75		≥1.73		≥1.69
CTE (100-600℃)	E	10-6/℃	≤1.5		≤2.4		≤2.9
	N		≤1.4		≤2.2		≤2.8
Ash		%	≤0.3		≤0.3		≤0.5
