RP / HP / UHP Grade Graphite Electrode

RP / HP / UHP Grade Graphite Electrode
RP / HP / UHP Grade Graphite Electrode RP / HP / UHP Grade Graphite Electrode

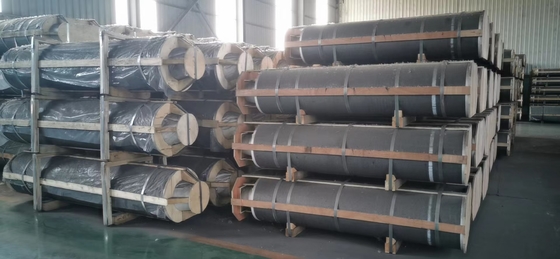

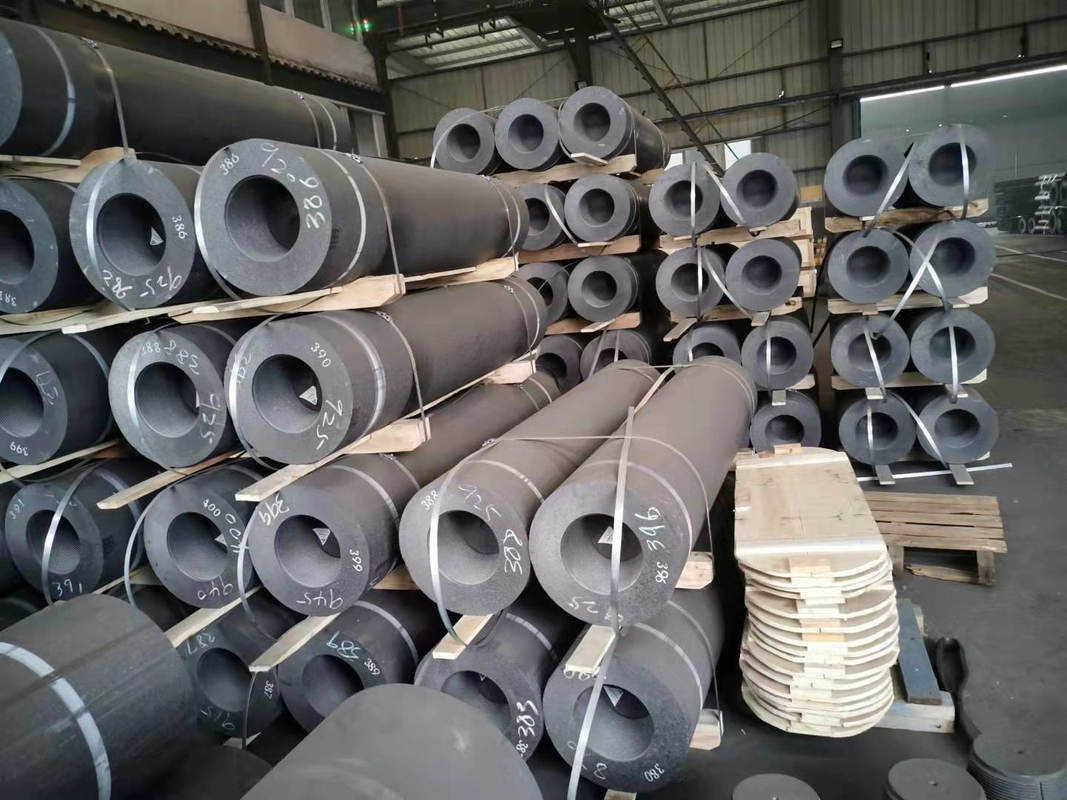

Large Image :  RP / HP / UHP Grade Graphite Electrode

Product Details:
Place of Origin: China
Brand Name: FGD
Certification: ISO9001, ISO14000
Model Number: fgd G-004
Payment & Shipping Terms:
Minimum Order Quantity: 1TON
Price: USD1500-USD2500/TON
Packaging Details: WOODEN CASEGraphite electrode is made of petroleum coke and imported needle coke. It is widely used in electric arc furnace and refining furnace. It is suitable for producing alloy steel and other metal and nonmetallic materials. Varieties: ordinary power,
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000 tons per month
Contact Now
Detailed Product Description
Model Number: RP HP UHP SHP Application: EAF
Grade: UHP (Ultra High Power) Apparent Density (g/cm³ ): 1.73
Superiority: High Energy Efficiency Nipple: 3TPI/4TPI/4TPIL
Manufacture Equipment: 10000KVA DC Grahitization Furnace Type: Electrode Block
Highlight:

UHP Grade Graphite Electrode

,

RP Grade Graphite Electrode

,

3TPI Carbon Graphite Electrode

RP/HP/UHP Grade Graphite Electrode

Graphite electrode is made of petroleum coke and imported needle coke. It is widely used in electric arc furnace and refining furnace. It is suitable for producing alloy steel and other metal and nonmetallic materials. Varieties: ordinary power, high power, quasi ultra-high power (non-national standard), ultra-high power graphite electrode, specification Φ 300- Φ 600, this product has low resistivity, good conductivity and thermal conductivity, good oxidation resistance, strong thermal shock resistance and mechanical vibration resistance, High mechanical strength, high mechanical processing strength and other characteristics.



1.Properties Unit:mm



Item

Unit
Norminal Diameter
UHP
HP
RP
≤400mm
≥450mm
≤400mm
≥450mm
≤300mm
≥350mm

Resistance
E

μ Ω .m
≤5.5
≤6.5
≤8.5
N
≤4.5
≤5.5
≤6.5
Bending
Strength
E

MPa
≥11.0
≥10.5
≥9.8
≥8.5
≥7.0
N
≥20.0
≥16.0
≥15.0
Elastic
Modulus
E

GPa
≤14.0
≤12.0
≤9.3
N
≤18.0
≤16.0
≤14.0
Bulk
Density
E

g/cm3
≥1.66
≥1.67
≥1.62
≥1.60
≥1.53
≥1.52
N
≥1.75
≥1.73
≥1.69
CTE
(100-600℃)
E

10-6/℃
≤1.5
≤2.4
≤2.9
N
≤1.4
≤2.2
≤2.8
Ash
%
≤0.3
≤0.3
≤0.5



Note:The above data for your reference.



2.Suggested Current Capacity and Current Density Unit:mm


Norminal
RP
HP
UHP
mm
Current load
A
Current Density A/cm2
Current load
A
Current Density A/cm2
Current load
A
Current Density A/cm2
200
5000-6900
15-21
5500-9000
18-25


250
7000-10000
14-20
8000-13000
18-25
9200-15100
21-30
300
10000-13000
14-18
13000-17400
17-24
13000-22000
20-30
350
13500-18000
14-18
17400-24000
17-24
20000-30000
20-30
400
18000-23500
14-18
21000-32000
16-24
25000-40000
19-30
450
22000-27000
13-17
25000-40000
15-24
32000-45000
19-27
500
25000-32000
13-16
30000-48000
15-24
38000-55000
18-27
550
32000-40000
13-16
37000-57000
15-23
48000-60000
18-24
600
38000-47000
13-16
44000-67000
15-23
52000-72000
18-24
700
45000-54000
13-16
54000-73000
15-23
62000-95000
18-24
RP / HP / UHP Grade Graphite Electrode 0
