Product Details:
Payment & Shipping Terms:
|
| Brand: | Forged | Material: | Tungsten Steel |
|---|---|---|---|
| Purity: | Customize | Feature: | Make Cutters |
Cemented carbide has good straightness, excellent hardness, and stable toughness.

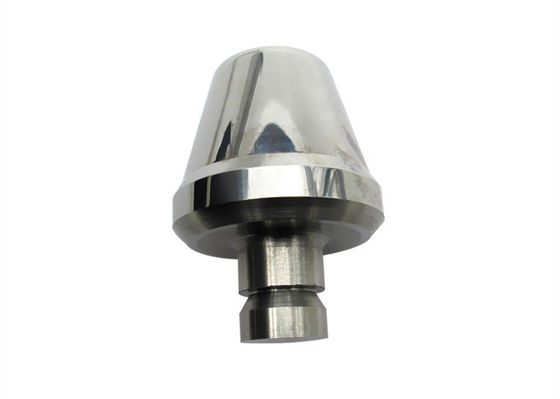

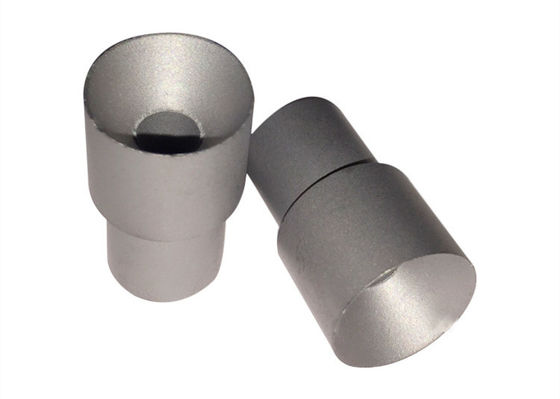

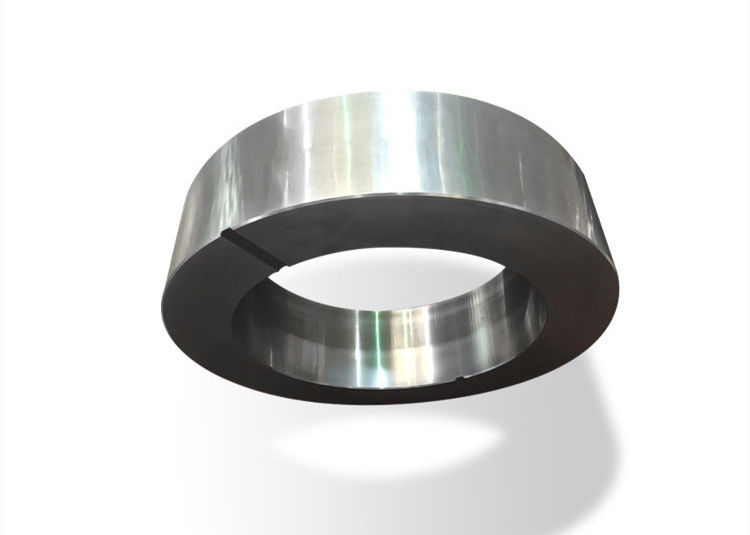

1.Product name: Non-standard or customized tungsten carbide products
2.Common material: YG6,YG8,YG10,YG11,YG13,YG15,YG20 etc
3.Main products: Customized moulds & dies, rod, plate, strips, cutting tools, TC ring and roller, mining buttons, carbide tips.
4.Dimension: Customized
5.Certification: ISO9001, ISO14001, SGS
Cemented carbide can be used for making the drill bits/ end-mills / reamers; automobile special cutters, printed circuit board special cutters, engine special cutters, horologe processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can be also used for making of cemented carbide stamping head, core bar and perforation tools.
Recommended Carbide Grade
| Grade | Physical and mechanical properties | Applications recommended | ||
| Grade | Density g/cm3 | Hardness No Less Than HRA(HV) | TRS No Less Than (Mpa) | |
| YG6X (K10) | 14.8-15.1 | 91 | 1490 | For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress. |
| YG6 (K20) | 14.7-15.1 | 89.5 | 1650 | For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm. |
| YG8 (K30) | 14.6-14.9 | 89 | 1800 | For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts. |
| YG15 | 13.9-14.2 | 86.5 | 2060 | For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drinning and punching and impacting dies. |
