Product Details:
Payment & Shipping Terms:
|
| Brand: | Forged | Material: | Tungsten |
|---|---|---|---|
| Density: | 19.3g/cm3 | Purity: | Over 99.95% |
| Feature: | High Temperature Resistance | Application: | Vacuum Furnace |
| Highlight: | W1 Tungsten Rod,W1 Tungsten Metal Rod,Bright Tungsten Metal Rod |
||

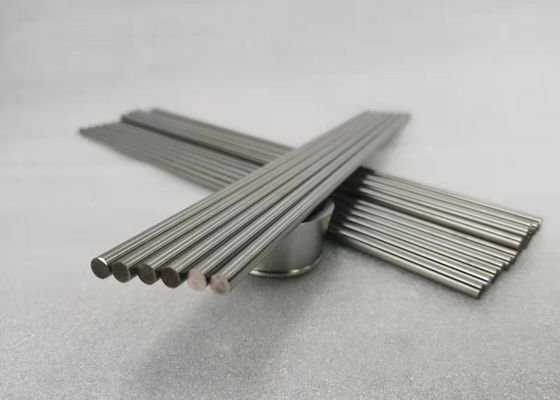

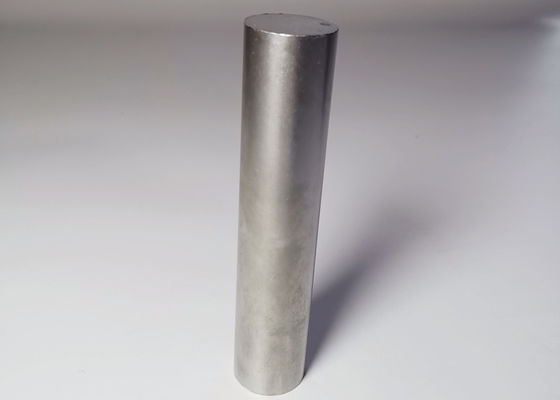

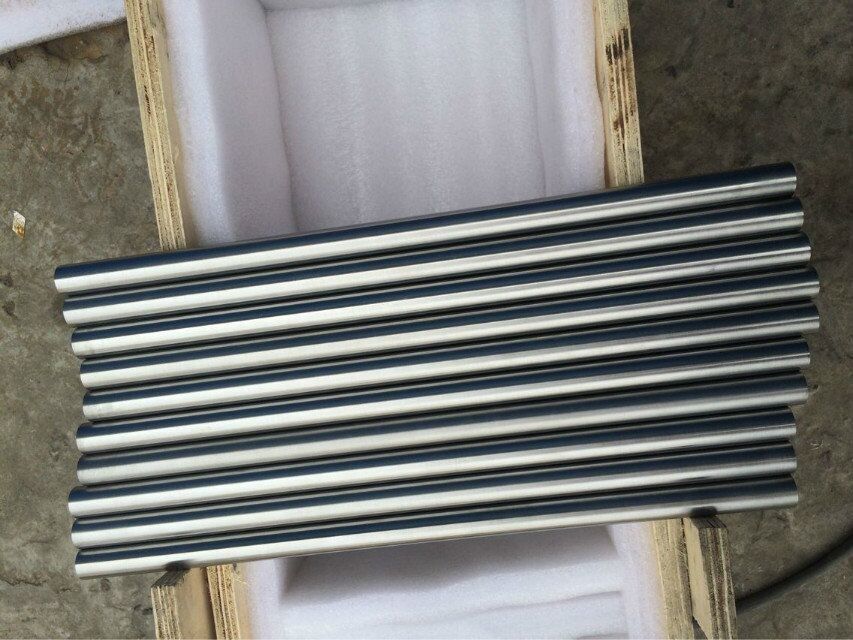

W1 rod, tungsten rod with bright surface
Specification
| Name: | Tungsten Rod | ||||||||||
| Purity: | W≥99.95% | ||||||||||
| Density: | ≥19.3g/cm3 | ||||||||||
| Linearity: | ≤1% | ||||||||||
| Surface: | Black, acid pickling, alkaline cleaning and polished surface | ||||||||||
| Dimension and tolerance | |||||||||||
| Diameter | Tolerance(%) | Max Length | |||||||||
| <10 | ±0.1 | 2500 | |||||||||
| 10-30 | ±0.1 | 2000 | |||||||||
| 30-60 | ±0.1 | 1500 | |||||||||
| 60-100 | ±0.2 | 1000 | |||||||||
| 100-200 | ±0.2 | 600 | |||||||||
| >200 | according to your request. | ||||||||||
| Chemical content (%) | |||||||||||
| As | Si | Sb | Mg | Pb | Sn | Fe | Ni | Bi | |||
| <0.0001 | <0.001 | <0.0001 | <0.0001 | <0.0001 | <0.0001 | 0.0013 | 0.0002 | <0.0001 | |||
| Al | Ca | Mo | P | N | O | C | W | ||||
| 0.0002 | <0.001 | 0.017 | <0.001 | 0.0020 | 0.0046 | 0.0010 | >99.95 | ||||
|
Usage Is widely used in various fields. Such as support line, import line, printer needle, various electrode and quartz furnace, filament, high-speed tool, automobile automatic product, sputtering target material. and used in Manufacture tungsten wire,elicit wire, bracket, eradiate cathode, electrodes, bracket of heating. |
|||||||||||
Our Main Products
1) Molybdenum products: plates, rods/electrode, crucible, tube, boat, fasteners, various molybdenum workpieces, etc.
2) Lab furnace: Box type muffle furnaces, tube vacuum furnace, atmosphere furnace, vacuum furnace and relevant accessories.
3) MoSi2 heating elements and SiC heating elements.
4) Tungsten products: plate, bars, crucible, tube, wire, boat, fasteners, etc.
5) Titanium & tantalum products: plate, bars, crucible
6) Alumina tubes and crucible.
7) And other related products.
