Product Details:
Payment & Shipping Terms:
|
| Purity: | ≥99.95% | Diameter: | ≥0.05mm |
|---|---|---|---|
| Temperature: | More Than 2000℃ | Application: | Heating Component |
| Density: | ≥19.2g/cm3 | Surface: | Black/ White |
| Producing: | Swaging | Grade: | W1 |
| Highlight: | OEM Heating Element Tungsten Wires,99.95 Percent Tungsten Wires,W1 Tungsten Heater Element |
||
Feature:
• High temperature performance
• Good machining performance
• High recrystallization temperature
• Good resistance to high tmperature sag performance
• Good acid and alkali resistance to room temperature
Application:

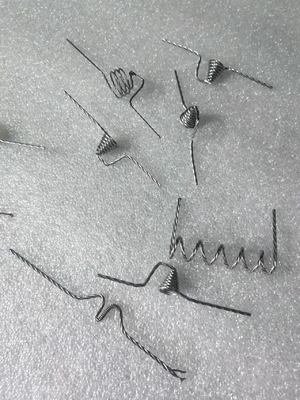

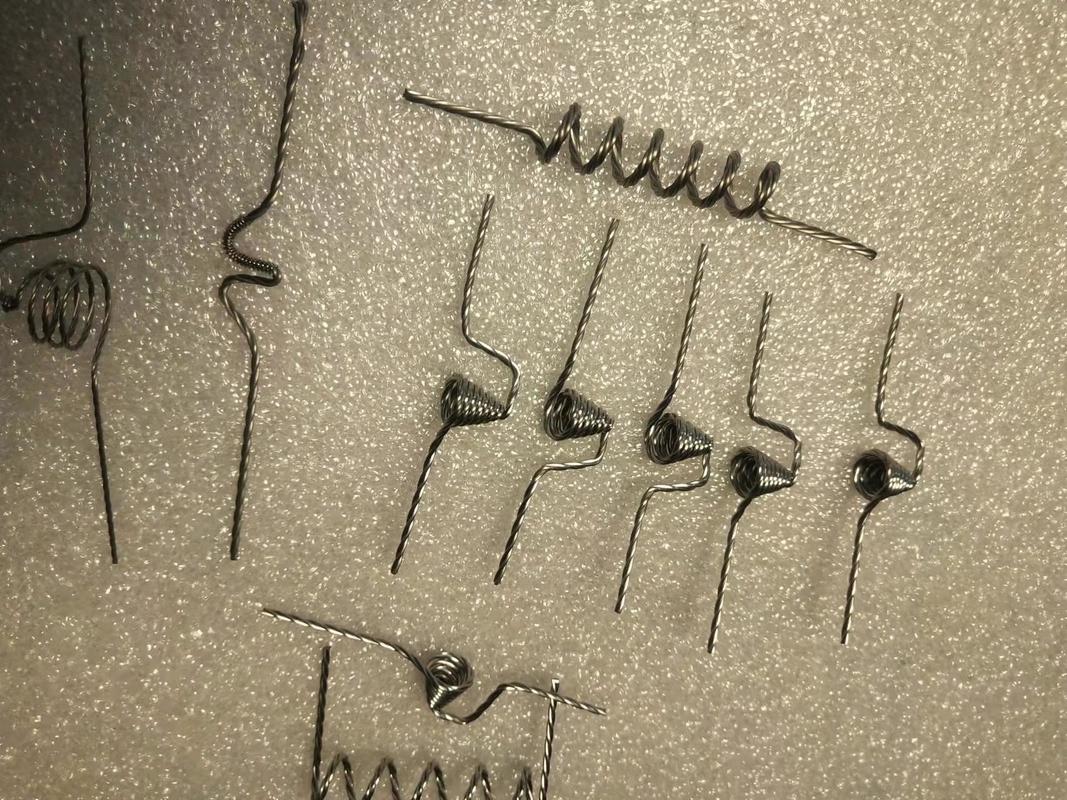

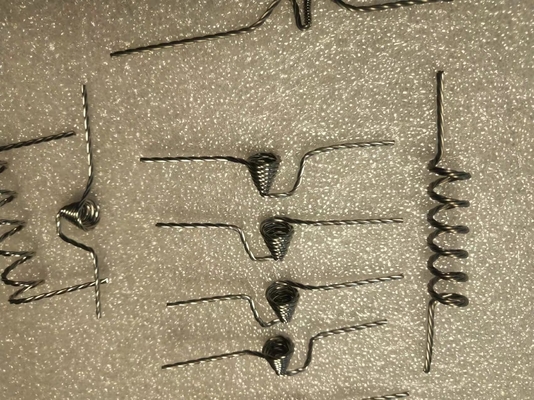

• Tungsten heater element
• Other heater components in semiconductor
• High temperature lamp and filament, stock - resistance filament, double helix filament etc
• Electric incandescent lamp filament, fluorescent light filament, etc
For the tungsten wire, following is the normal tungsten wire dimension form. We could make the tungsten wire with thinner diameter.
| item | surface | diameter/mm | purity | density(g/cm³) | producing methord | |
| Dia | tolerance | |||||
| tungsten wire | bright | Ø0.05-1 | ±0.1 | ≥99.95% | ≥19.2 | swaging |
| Ø1-3 | ±0.2 | ≥99.95% | ≥19.2 | |||
| black | Ø0.05-1 | ±0.1 | ≥99.95% | ≥19.2 | ||
| Ø1-3 | ±0.2 | ≥99.95% | ≥19.2 |
|||
